130W DC Brushless Motor Controller 310VDC 80% High Efficiency

Product Description:

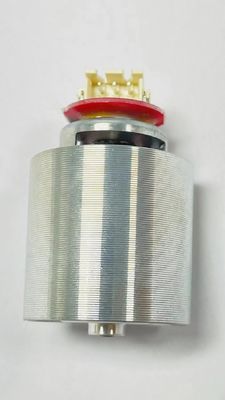

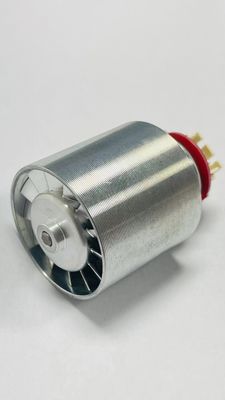

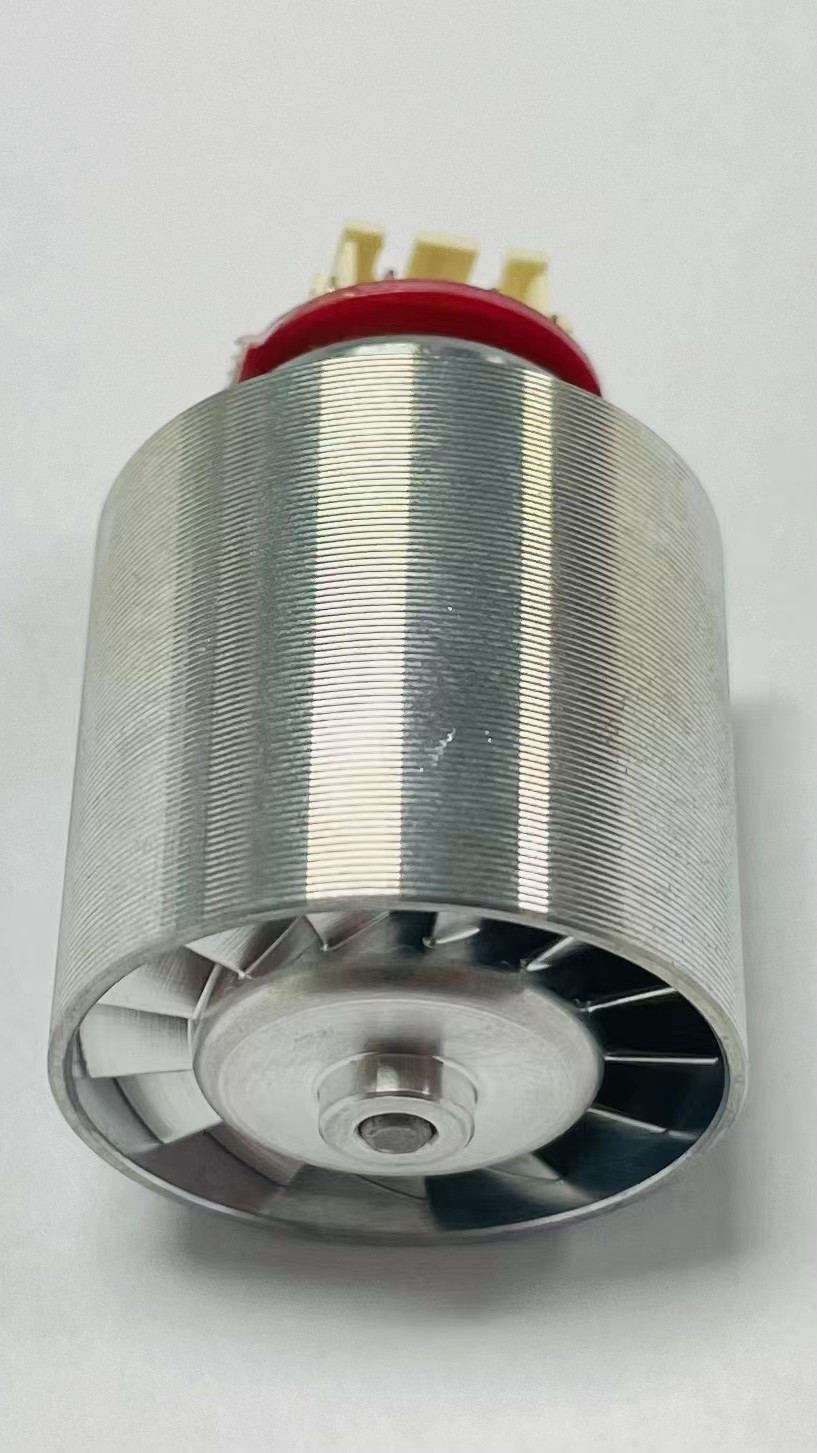

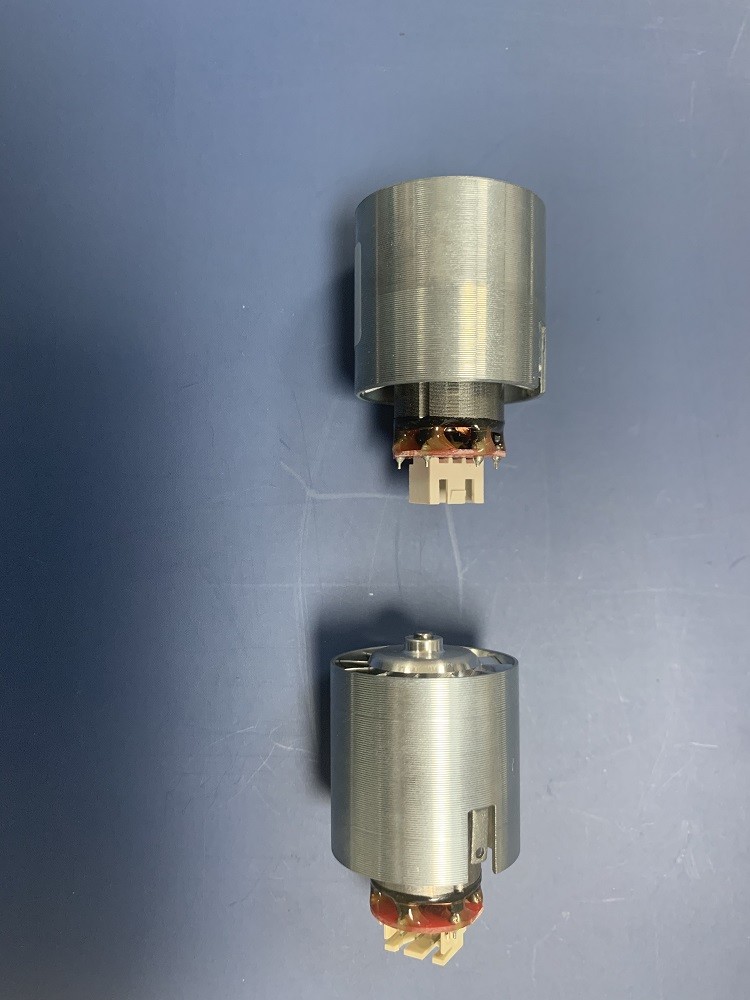

The DC Brushless Motor Controller BLDC29-AC220V is an advanced high speed Brushless Motor Controller designed to provide superior performance and reliability. This motor controller has a motor efficiency of 80%, and a dimension of φ29.2*46.5. It has a top speed of 115000rpm and can be customized to meet your specific motor requirements. In addition, the DC Brushless Motor Controller BLDC29-AC220V is equipped with a variety of advanced features, such as a programmable speed control, adjustable acceleration and deceleration, and digital signal processing for smooth operation.

Features:

• High speed Brushless Motor Controller
• DC Brushless Motor Controller
• DC Brushless Motor Controller with Ball Bearing
• DC Brushless Motor Controller with Fan
• Shaft: 3mm
• Dimension: φ29.2*46.5
• Weight: ≈57.3g

Applications:

BLDC Motor is a type of motor with a range of exciting features, such as high efficiency, strong controllability, and a lengthy lifespan. It is main used in hairdryer based beauty power tools.

Customization:

We offer DC Brushless Motor Controller with the following features:

• Model Number: BLDC29-AC220V
• Place of Origin: China
• Accessories: Fan
• Bearing At Output: Ball Bearing
• Torque: 0.0083NM
• Dimension: φ29.2*46.5
• Continuous current: 0.6A

Packing and Shipping:

Our DC Brushless Motor Controllers are packaged in a corrugated box with protective packaging material to reduce the risk of damage during shipping. The box is then secured with tape and labels, and shipped with a reliable courier service.
