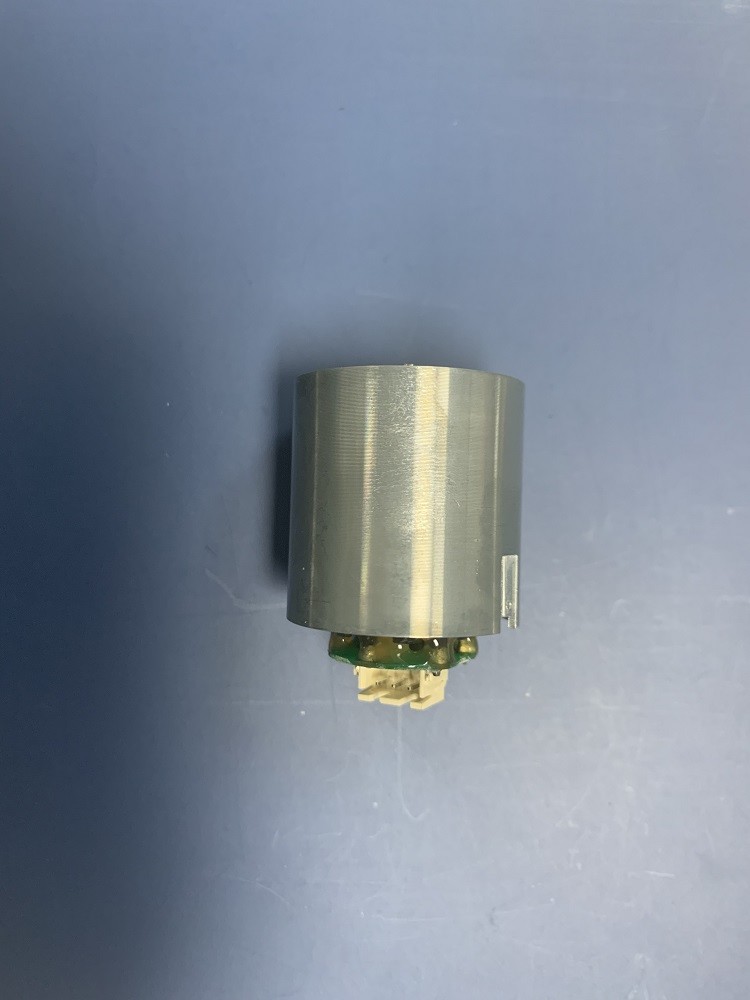

1.2A Permanent Magnet DC Brushless Motor 115000rpm lightweight

Place of Origin China
Model Number Induastrial BLDC29-AC120V

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Shaft 3mm Speed 115000rpm
Dimension φ29.2*46.5 Accessories Fan
Motor Efficiency 80% Bearing At Output Ball Bearing
Continuous Current 1.2A Name DC Brushless Motor
High Light

Permanent Magnet DC Brushless Motor


DC Brushless Motor 115000rpm


Permanent Magnet Brushless Motor

Leave a Message
Product Description

Product Description:

DC Brushless Motor

DC brushless motor is a kind of electric motor with a built-in permanent magnet that uses direct current (DC) power and has no brushes. It is a type of brushless DC electric motor (BLDC motor) that utilizes an electronically commutated DC motor design, with a power range from 130W to customized. This motor provides high performance and low noise due to its brushless design. It also has a low torque, with 0.0083NM of torque, and a lightweight construction, with an approximate weight of 57.3g.

The DC brushless motor also has a 3mm shaft Its superior design and construction make it a reliable and cost-effective motion control solution. It is also highly efficient and reliable



  • Product Name: DC Brushless Motor
  • Bearing At Output: Ball Bearing
  • Dimension: φ29.2*46.5
  • Motor Specifications: Can Be Customized
  • Accessories: Fan
  • Voltage: 140VDC

Technical Parameters:

Property Value
Name DC Brushless Motor
Voltage 140VDC
Continuous current 1.2A
Torque 0.0083NM
Dimension φ29.2*46.5
Power 130W
Weight ≈57.3g
Motor Specifications Can Be Customized
Bearing At Output Ball Bearing
Motor efficiency 80%


BLDC Motor is a type of motor with a range of exciting features, such as high efficiency, strong controllability, and a lengthy lifespan.It is main used in hairdryer based beauty power tools.



DC Brushless Motor
  • Model Number: BLDC29-AC120V
  • Place of Origin: China
  • Continuous current: 1.2A
  • Power: 130W
  • Torque: 0.0083NM
  • Speed: 115000rpm
  • Shaft: 3mm

We provide custom DC Brushless Motor service and specialize in permanent magnet brushless dc motor, brushless dc electric motor, brushless dc electric motor, electric motor.


Support and Services:

DC Brushless Motor Technical Support and Service

We provide technical support and service for DC Brushless Motors to ensure that our customers benefit from the best performance and reliability of our products. Our technical support team is available 24/7 to provide troubleshooting and technical advice

Our technical support team is available to help you with any questions or issues you might have regarding the installation, operation, and maintenance of your DC Brushless Motor. They can provide information on the troubleshooting process, as well as advice on the best practices for using your motor.


We provide complete service and repair services for DC Brushless Motors. Our technicians are trained and certified to work with DC Brushless Motors and can provide fast and reliable service. We also offer maintenance services to help keep your motor running smoothly.
