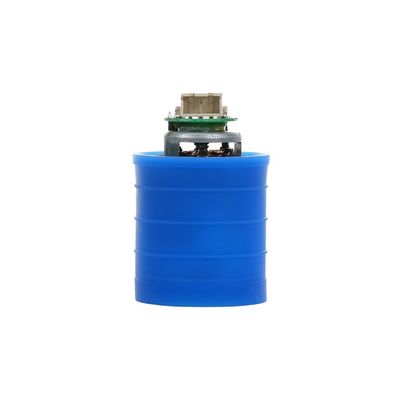

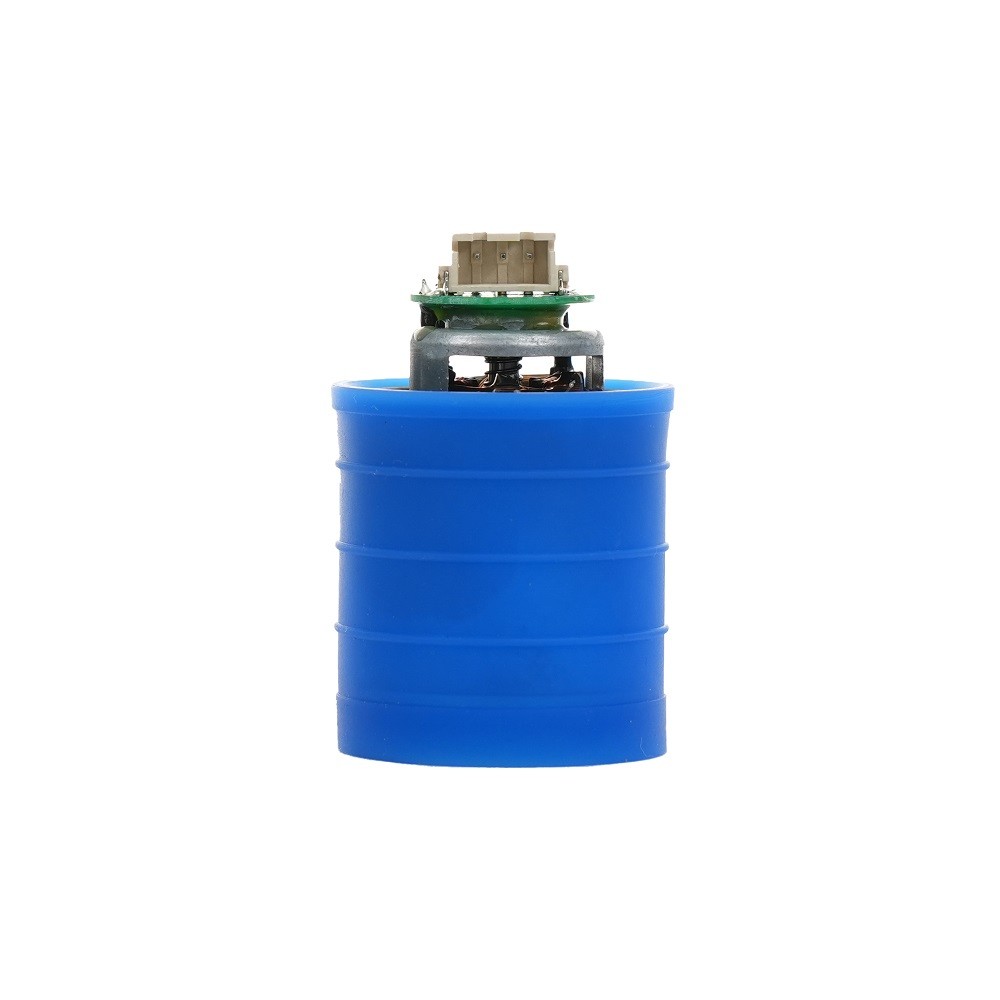

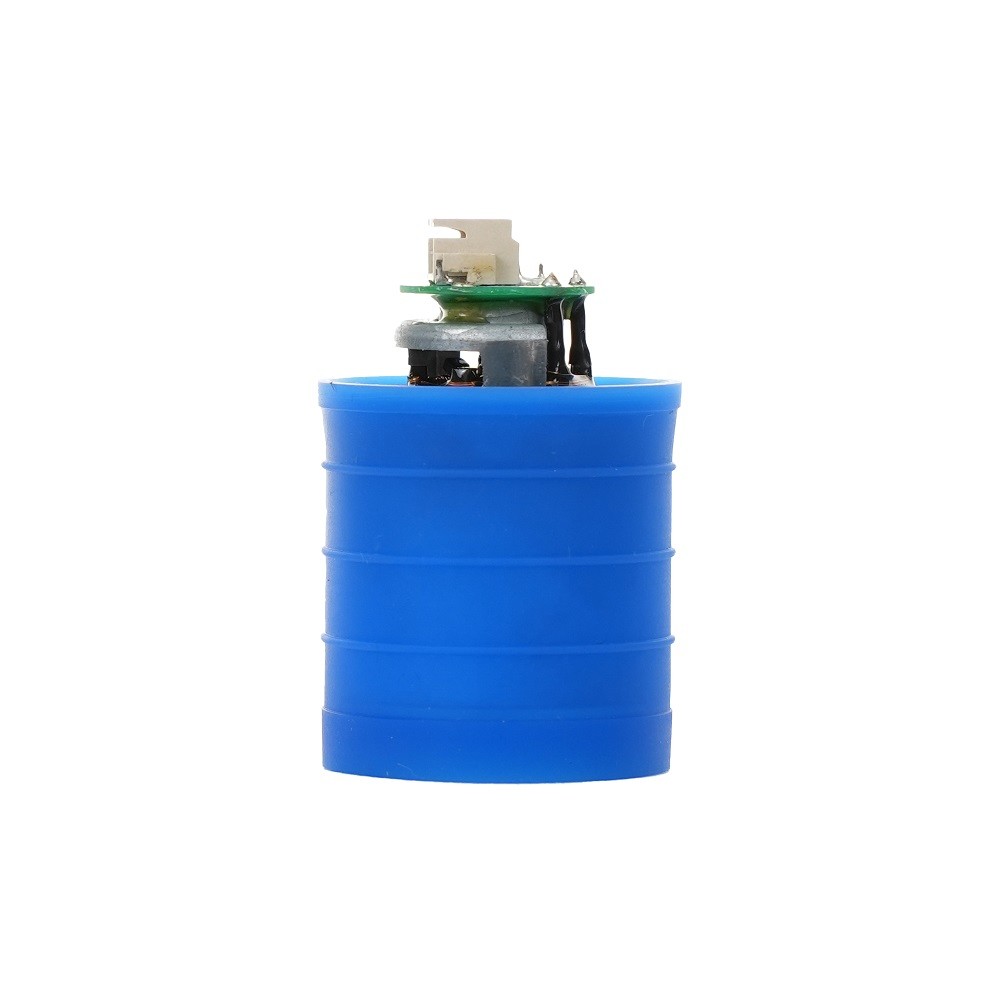

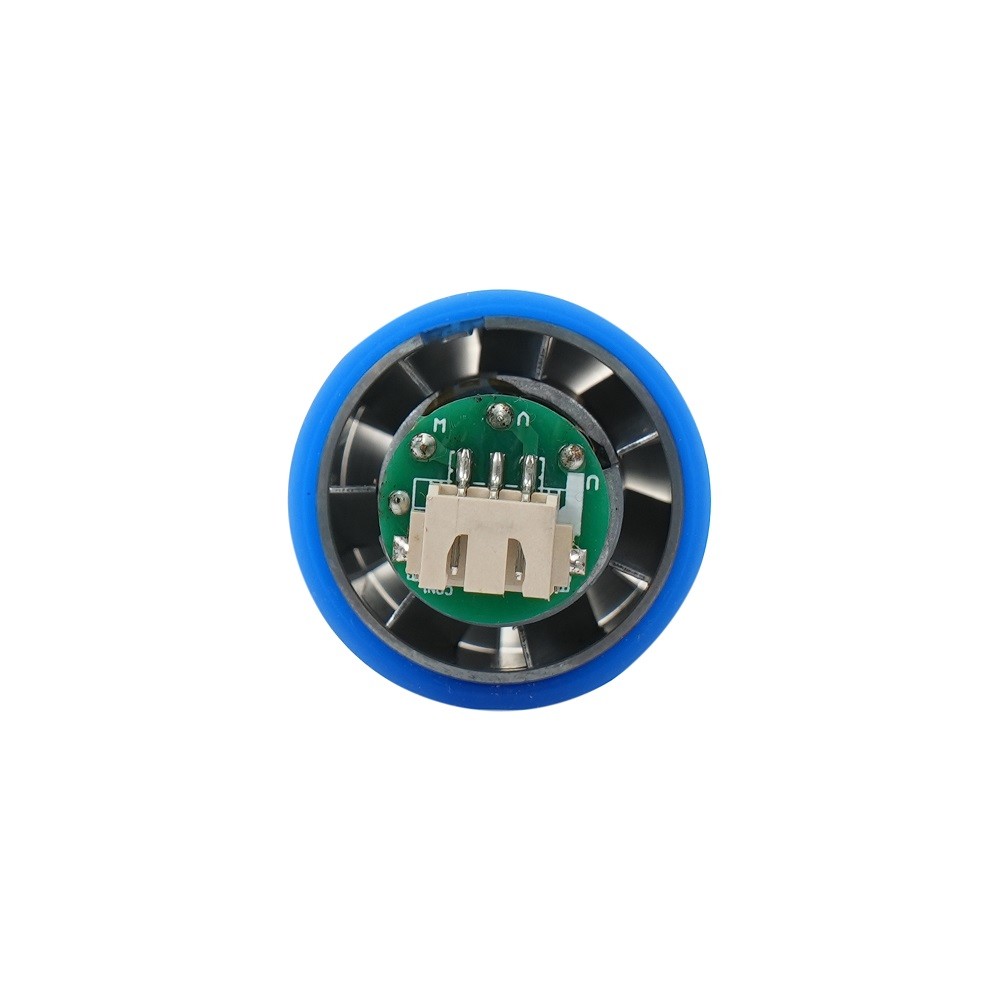

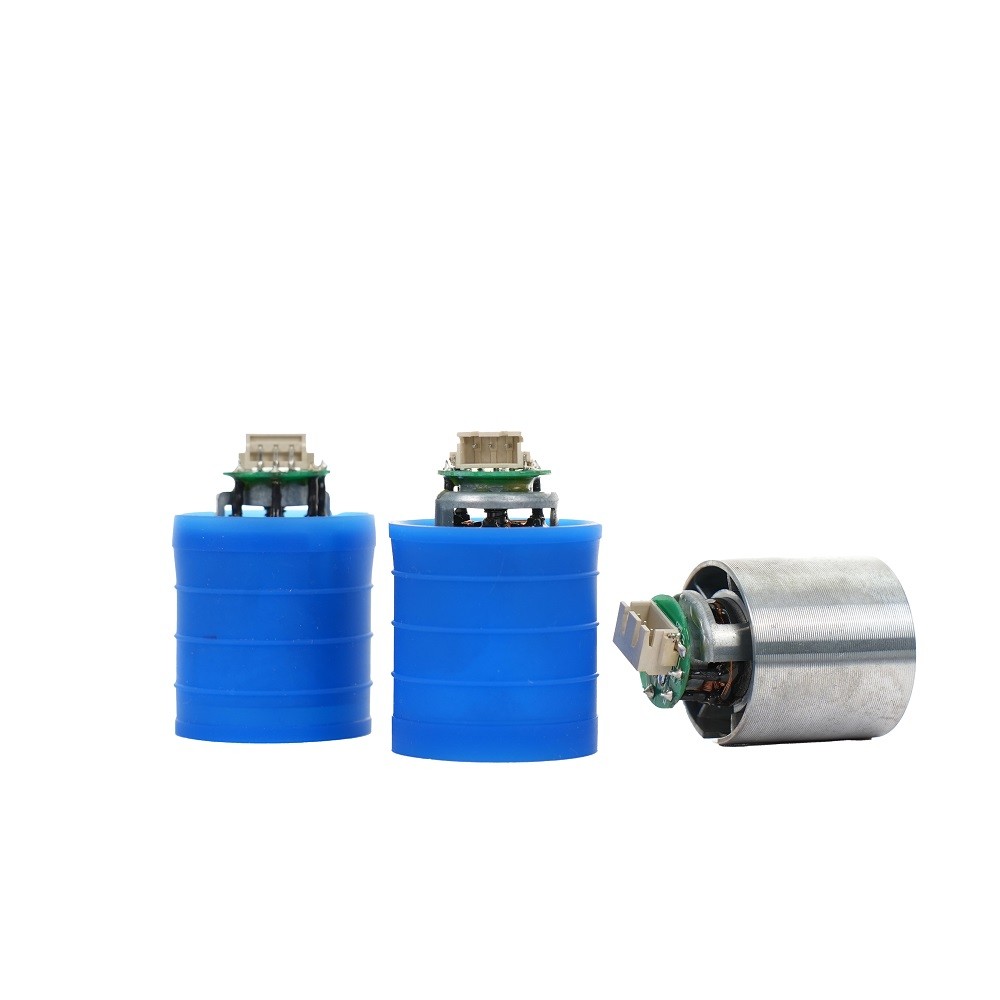

115000rpm Small High Speed Brushless Motor With 0.0083NM Torque

Place of Origin China
Model Number Industrial BLDC29-AC220V

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage 310VDC Weight ≈57.3g
Torque 0.0083NM Name High Speed Brushless Motor
Motor Type BLDC29-AC220V Accessories Fan
Bearing At Output Ball Bearing Motor Specifications Can Be Customized
High Light

115000rpm High Speed Brushless Motor

,

Small High Speed Brushless Motor

,

Small Brushless Motor Torque

Leave a Message
Product Description



115000rpm Small Brushless Motor with 0.0083NM Torque

Product Description:

Our High Speed Brushless Motor is a small brushless motor with high speed.This High Speed Brushless Motor has a weight of ≈57.3g and a continuous current of 0.6A. It is equipped with a ball bearing at the output and a 3mm shaft. It also comes with a fan as an accessory.



Features:

  • Product Name: High Speed Brushless Motor
  • Accessories: Fan
  • Dimension: φ29.2*46.5
  • Power: 130W
  • Bearing At Output: Ball Bearing
  • Voltage: 310VDC
  • High Speed: small brushless motor
  • Small Brushless Motor: Compact design
  • Small Brushless Motor Fan: Efficient cooling to ensure the stability of the motor


Technical Parameters:

Parameter Value
Name High Speed Brushless Motor
Torque 0.0083NM
Voltage 310VDC
Accessories Fan
Bearing At Output Ball Bearing
Shaft 3mm
Continuous current 0.6A
Speed 115000rpm
Motor efficiency 80%
Motor Specifications Can Be Customized
Motor Type Mini Brushless Motor, Small Brushless Motor


Applications:

BLDC Motor is a type of motor with a range of exciting features, such as high efficiency, strong controllability, and a lengthy lifespan.It is main used in hairdryer based beauty power tools.



Customization:

High Speed Brushless Motor
  • Model Number: BLDC29-AC220V
  • Place of Origin: China
  • Motor Specifications: Can Be Customized
  • Accessories: Fan
  • Weight: ≈57.3g
  • Motor efficiency: 80%
  • Motor Type: BLDC29-AC220V
  • Keywords: Small Brushless Motor, Brushless Electric Motor, Brushless Electric Motor
