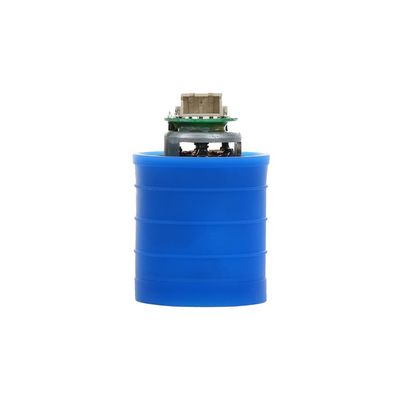

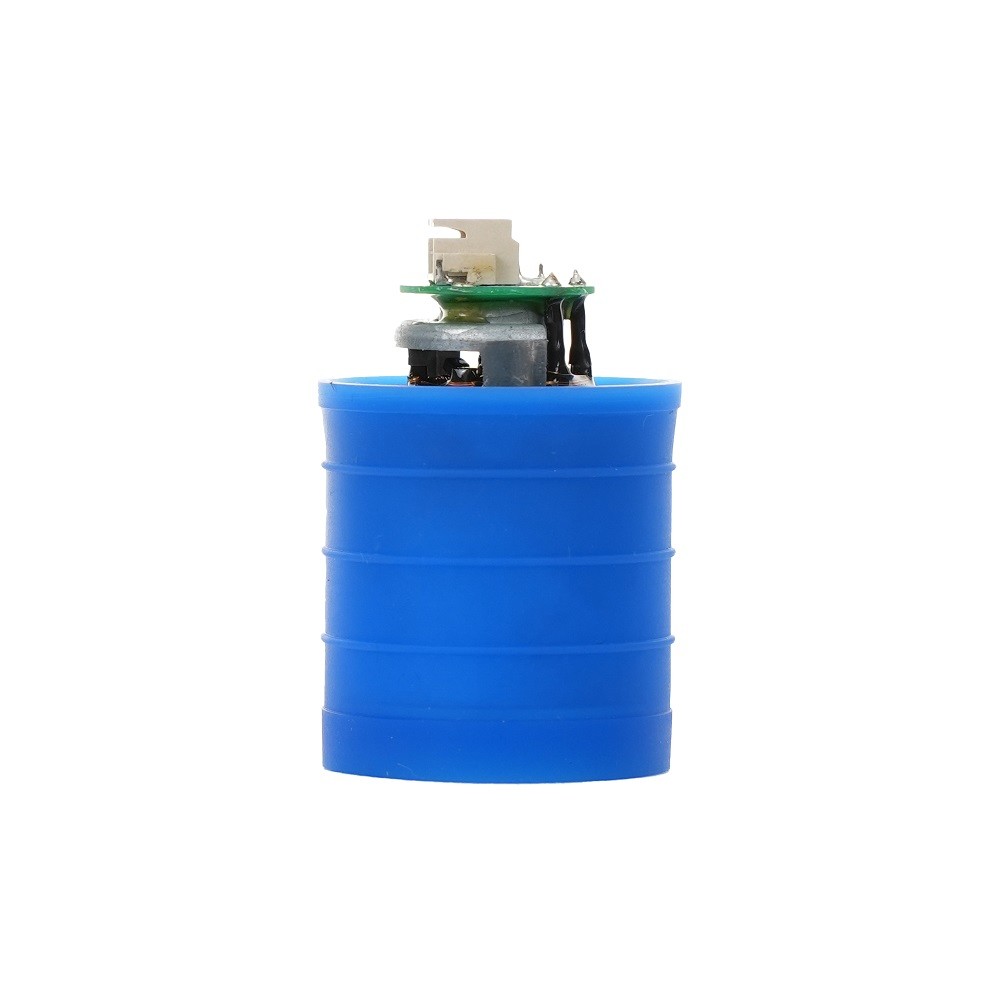

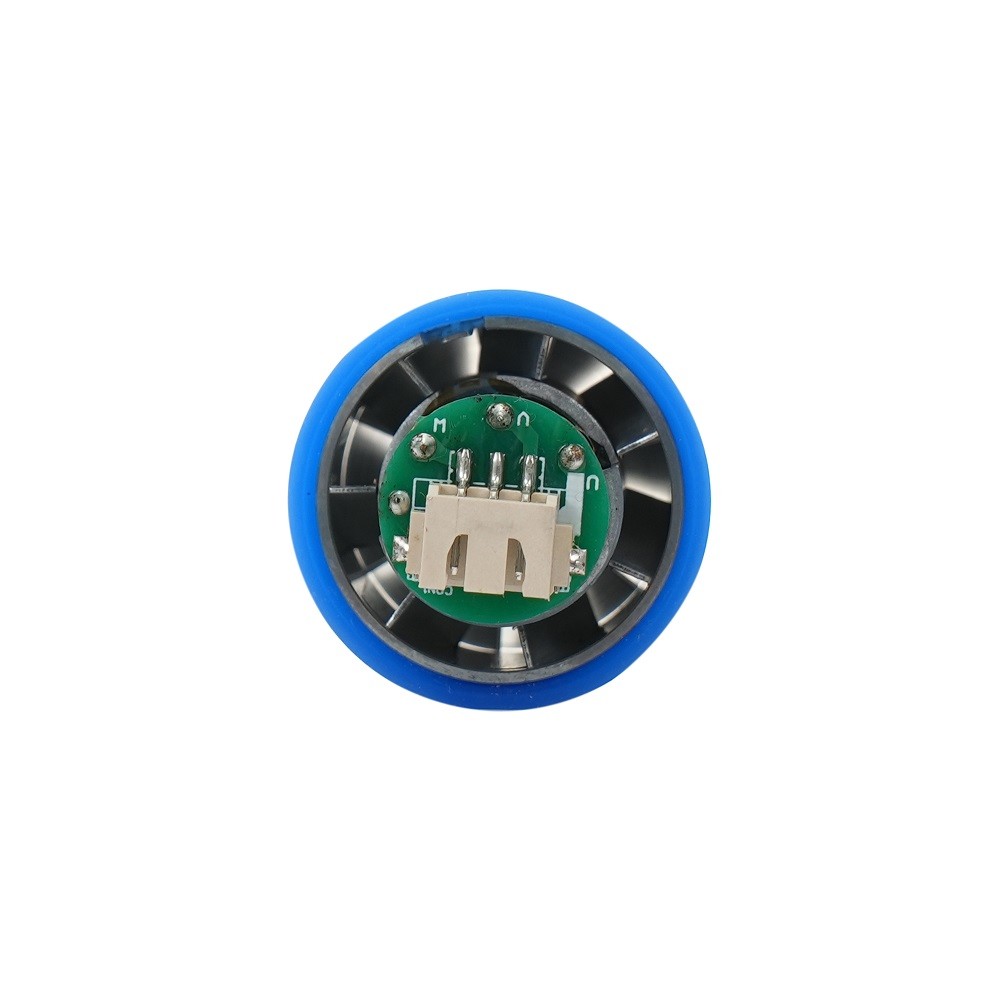

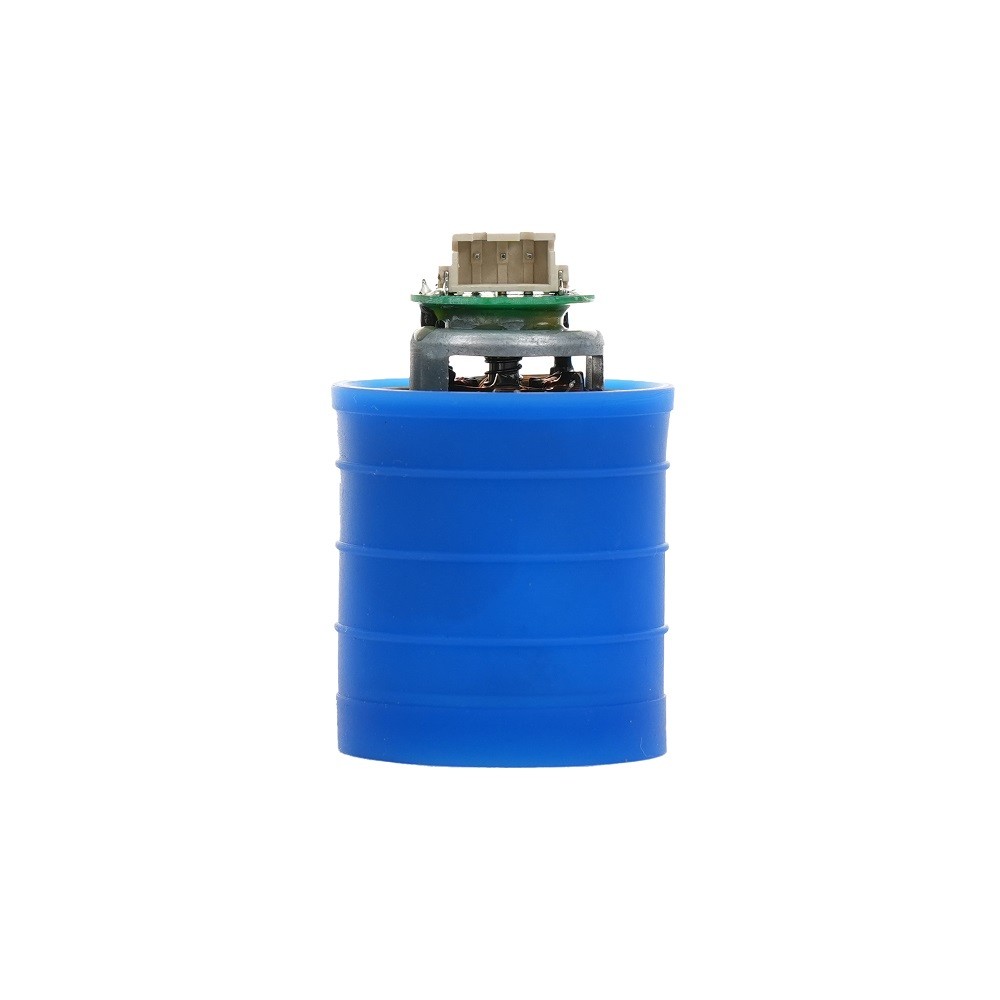

Precision Electric Brushless High Speed Motor 310VDC High Efficiency

Place of Origin China
Model Number Industrial BLDC29-AC220V

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Motor Specifications Can Be Customized Motor Efficiency 80%
Voltage 310VDC Power 130W
Motor Type BLDC29-AC220V Name High Speed Brushless Motor
Shaft 3mm Torque 0.0083NM
High Light

Electric Brushless High Speed Motor


Precision Brushless High Speed Motor


Electric Brushless Motor 310VDC

Leave a Message
Product Description

130W Brushless Electric Motor 0.6A Continuous Current 3mm Shaft

Product Description:

High Speed Brushless Motor is a kind of brushless electric motor which is widely used in many fields due to its small size and high efficiency. It has a 3mm shaft, 310VDC voltage, 0.6A continuous current, and 80% motor efficiency.

With its high speed and precision, this High Speed Brushless Motor is one of the best motors in the market. It is an excellent choice for those who need a small brushless motor with high performance. Get this motor today and enjoy its fast and precise performance!



  • Product Name: High Speed Brushless Motor
  • Weight: ≈57.3g
  • Torque: 0.0083NM
  • Shaft: 3mm
  • Accessories: Fan
  • Dimension: φ29.2*46.5
  • Highlights: brushless electric motor, mini brushless motor, small brushless motor

Technical Parameters:

Name High Speed Brushless Motor
Dimension φ29.2*46.5
Weight ≈57.3g
Power 130W
Bearing At Output Ball Bearing
Accessories Fan
Voltage 310VDC
Motor Specifications Can Be Customized
Shaft 3mm
Speed 115000rpm


BLDC Motor is a type of motor with a range of exciting features, such as high efficiency, strong controllability, and a lengthy lifespan.It is main used in hairdryer based beauty power tools.



High Speed Brushless Motor

Model Number: BLDC29-AC220V

Place of Origin: China

Accessories: Fan

Bearing At Output: Ball Bearing

Motor efficiency: 80%

Dimension: φ29.2*46.5

Continuous current: 0.6A

This high speed brushless motor is a great choice for small brushless motor, mini brushless motor, brushless electric motor with its high efficiency and ball bearing output.
