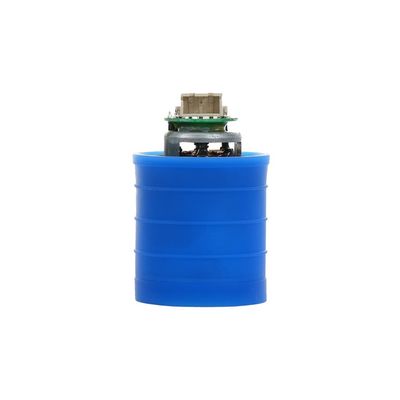

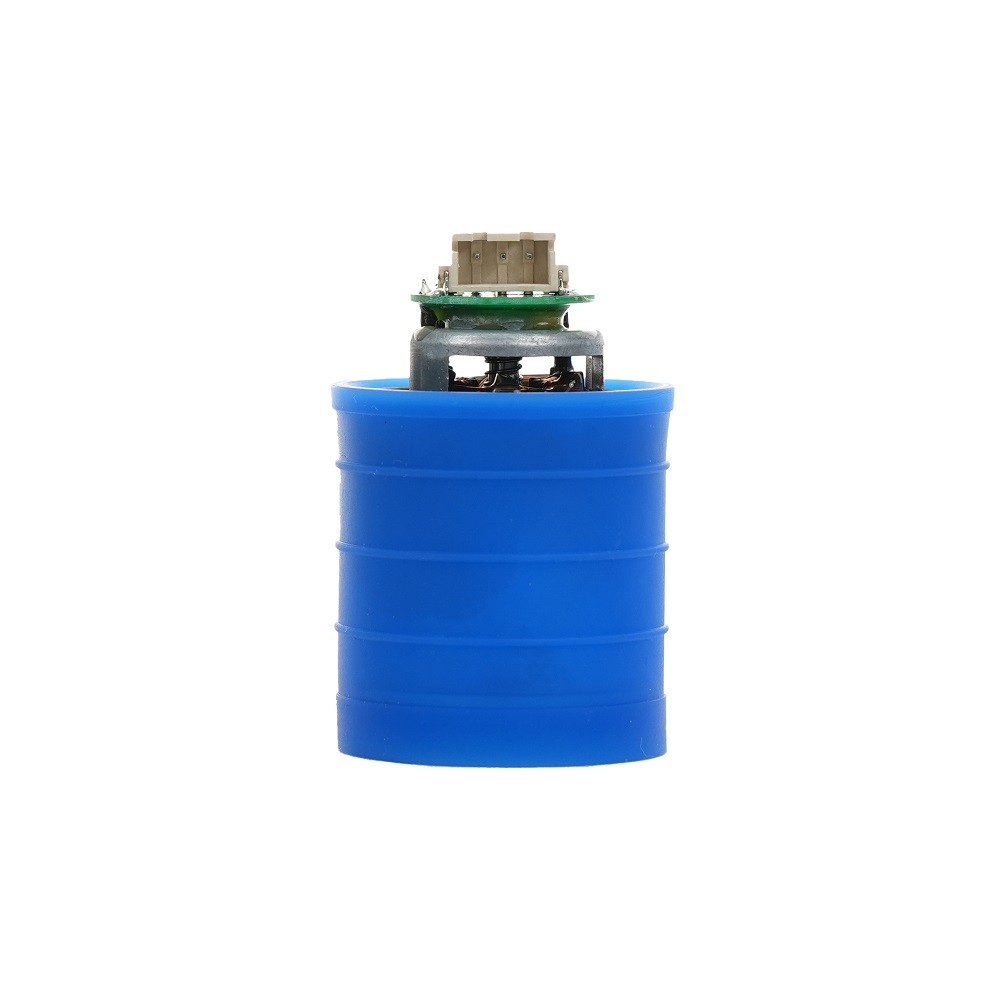

Hair Dryers Mini Motor Brushless High Speed 220V Brushless Electric Motor
| Place of Origin | China |
|---|---|
| Model Number | Industrial BLDC29-AC220V |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor Type | BLDC29-AC220V | Bearing At Output | Ball Bearing |
|---|---|---|---|
| Power | 130W | Weight | ≈57.3g |
| Voltage | 310VDC | Name | High Speed Brushless Motor |
| Accessories | Fan | Shaft | 3mm |
| High Light | Hair Dryers Mini Motor Brushless,Mini Motor Brushless High Speed,220V Brushless Electric Motor |
||
Product Description
80% Efficiency 3mm Shaft Brushless Electric Motor
Product Description:
High Speed Brushless Motor is a mini brushless motor with a Voltage of 310VDC, Dimension of φ29.2*46.5 and 0.0083NM of Torque. It is a BLDC29-AC220V motor and comes with a fan as an accessory.
Features:
- Product Name: High Speed Brushless Motor
- Continuous current: 0.6A
- Speed: 115000rpm
- Voltage: 310VDC
- Bearing At Output: Ball Bearing
- Accessories: Fan
Technical Parameters:
| Property | Value |
|---|---|
| Name | High Speed Brushless Motor |
| Voltage | 310VDC |
| Dimension | φ29.2*46.5 |
| Motor Type | BLDC29-AC220V |
| Accessories | Fan |
| Shaft | 3mm |
| Torque | 0.0083NM |
| Power | 130W |
| Bearing At Output | Ball Bearing |
| Weight | ≈57.3g |
Applications:
Advantages of Brushless Direct Current Motors in Hairdryers
Brushless Direct Current (BLDC) motors have accumulated a great amount of popularity in the past decade due to their outstanding efficiency and superior control. As a result, they are practically the go-to choice for continuous duty equipment, as their long lifespans are incredibly favourable.
Hairdryers are a perfect example of where BLDC motors are exceptionally useful. Compared to traditional hair dryers, BLDC motors located at the core of the product enhance power efficiency and consequently save energy. Even if the air volume reaches its maximum, the amount of power enlisted from the motor remains the same, cutting down on power consumption significantly.
BLDC motors in hairdryers therefore epitomise the energy-saving features of this type of motor, creating an effective cut down on electricity consumption.
Customization:
Customized High Speed Brushless Motor
- Model Number: BLDC29-AC220V
- Place of Origin: China
- Speed: 115000rpm
- Dimension: φ29.2*46.5
- Continuous current: 0.6A
- Weight: ≈57.3g
- Name: High Speed Brushless Motor
- Keywords: brushless electric motor, small brushless motor, mini brushless motor
Support and Services:
High Speed Brushless Motor Technical Support and Service
We offer comprehensive technical support and service for our High Speed Brushless Motors. Our expert technicians can assist with installations, repairs, maintenance, and more.
We offer a range of services for our High Speed Brushless Motors, including:
- Installation
- Troubleshooting
- Repairs
- Maintenance
- Inspection and testing
We also provide remote technical support for our High Speed Brushless Motors. Our technicians can diagnose and troubleshoot any issues remotely, so you can get your motor up and running quickly.
If you have any questions or need technical support and service for your High Speed Brushless Motor, please don't hesitate to contact us.
