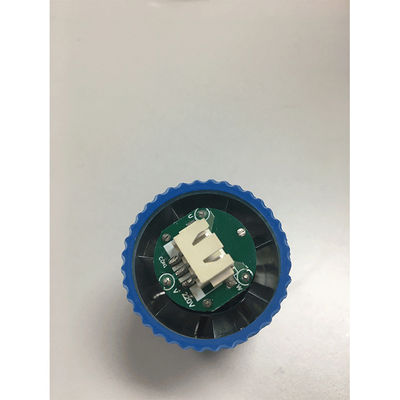

Motor Type BLDC29-AC220V High Speed Brushless Motor with Fan

Place of Origin China
Certification CE UL
Model Number BLDC29-AC220V
Price can discussed
Packaging Details carton
Delivery Time 20days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name High Speed Brushless Motor Weight ≈57.3g
Voltage 310VDC Motor Type BLDC29-AC220V
Torque 0.0083NM Continuous Current 0.6A
Power 130W Accessories Fan
Leave a Message
Product Description

Product Description:

Introducing the High Speed Brushless Motor – the perfect choice for mini brushless motor applications. With its brushless electric motor design and renowned quality, this motor is the go-to choice for applications that need to operate at a High Speed of 110000rpm. And, with its lightweight of ≈57.3g, you can be sure that the motor won’t weigh you down. Plus, its bearing at output is a ball bearing, and the motor can be customized to meet your application’s specific requirements.

The High Speed Brushless Motor has been the number one choice for many applications because of its combination of speed, weight, and quality. Get your hands on the best brushless motor on the market today and experience the difference that our High Speed Brushless Motor can make in your application.


  • Product Name: High Speed Brushless Motor
  • Accessories: Fan
  • Dimension: φ29.2*46.5
  • Shaft: 3mm
  • Voltage: 310VDC
  • Speed: 110000rpm
  • Keywords: brushless electric motor, mini brushless motor, High Speed Brushless Motor

Technical Parameters:

Parameter Value
Motor Type BLDC29-AC220V
Weight ≈57.3g
Motor efficiency 80%
Torque 0.0083NM
Shaft 3mm
Speed 110000rpm
Continuous current 0.6A
Dimension φ29.2*46.5
Power 130W
Accessories Fan


High Speed Brushless Motor

The BLDC29-AC220V High Speed Brushless Motor is the perfect solution for applications requiring high speed and precision. It is a brushless electric motor manufactured in China and is certified by CE UL. It has a weight of ≈57.3g, a shaft of 3mm, a speed of 110000rpm and a dimension of φ29.2*46.5. It is well suited for applications such as robotics, drones, and medical equipment. The motor is packed in a carton and delivery time is 20 days. The price is negotiable and payment terms are T/T.


High Speed Brushless Motor

Model Number: BLDC29-AC220V
Place of Origin: China
Certification: CE UL
Price: Can be discussed
Packaging Details: Carton
Delivery Time: 20 Days
Payment Terms: T/T
Power: 130W
Shaft: 3mm
Motor Specifications: Can Be Customized
Motor Type: BLDC29-AC220V
Bearing At Output: Ball Bearing

We are specialized in providing mini brushless motor, brushless electric motor, brushless electric motor with high speed and high performance.

Support and Services:

High Speed Brushless Motor Technical Support and Service

We provide technical support and service for our High Speed Brushless Motor product. Our technical support team is available to help you with start-up, operation, troubleshooting and maintenance. We also offer training and repair services.

Our technicians can assist with product installation, setup, and operation. They can also provide technical advice on how to use the product safely and efficiently.

We provide troubleshooting services to help diagnose and resolve any issues that may arise with the product. If you need help with maintenance, we can provide assistance in cleaning, lubrication, and other routine maintenance.

Our training services will help you gain the necessary skills to use the product effectively. We also offer repair services to restore the product back to its original working condition.
